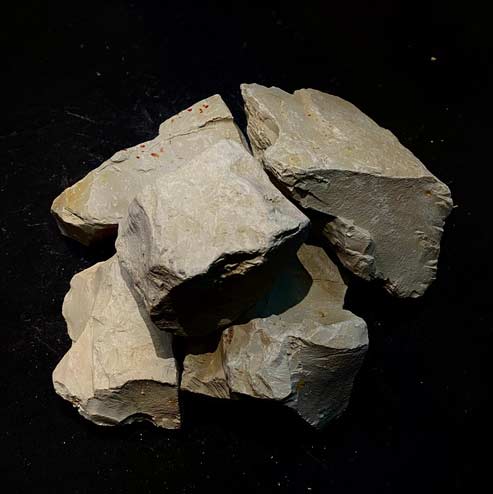

| SKC-MUD | ||||||
|---|---|---|---|---|---|---|
| CHEMICAL PROPERTIES XRF Verified |
PHYSICAL PROPERTIES | |||||
| Si2o | % | 52.7 | MBI | mg g-1 | 38.6 | |
| Ai2o3 | % | 28.4 | Sulphate | ppm | 22.9 | |
| Fe2o3 | % | 1.80 | pH | 7.4 | ||
| Ti2o3 | % | 2.75 | Conductivity | uS | 208 | |
| CaO | % | 0.27 | Soluble Salt | ppm | 440 | |
| MgO | % | 0.23 | MoR(extruded) | Kg cm-2 | 74.2 | |
| K2O | % | 1.69 | MoR(Dry) | 34.8 | ||
| Na2O | % | 0.02 | WABS | % | 2.25 | |
| LOi | % | 10.5 | L* | 68.0 | ||
| Total | 99.2 | Colour | a* | 3.31 | ||
| b* | 23.0 | |||||
| Shrinkage | % | 10.2 | ||||
| Partical Size Distribution by SediGraph | Sleve Residue-wet Retention | ||||
|---|---|---|---|---|---|
| <7um | % | 89.9 | >125um | % | 0.11 |
| <5um | % | 86.0 | >75um | % | 0.05 |
| <2um | % | 71.4 | >45 um | % | 0.06 |
| <1um | % | 60.3 | Cumulative>45 | % | 0.21 |
