Industrial Applications
- Cermaic Industry
Sub-Product Specifications
| CHEMICAL PROPERTIES XRF VERIFIED | ||
|---|---|---|
| SiO2 | % | 53.26 |
| Al2O3 | % | 28.41 |
| Fe2O3 | % | 2.19 |
| Ti2O3 | % | 3.28 |
| CaO | % | 0.31 |
| MgO | % | 0.24 |
| K2O | % | 0.07 |
| Na2O | % | 0.72 |
| LOi | % | 11.09 |
| Total | 99.57 | |
| PHYSICAL PROPERTIES | ||
|---|---|---|
| MBI | mg g-1 | 42.8 |
| Sulphate | ppm | 681.7 |
| pH | - | 7.4 |
| Conductivity | uS | 218 |
| Soluble Salt | ppm | 1,630 |
| MoR(Fired) | - | 412 |
| MoR(Dry) | - | 52.2 |
| WABS | % | 1.01 |
| L* | 75.3 | |
| Colour | a* | 2.6 |
| b* | 21.47 | |
| Shrinkage | % | 12.6 |
| Partical Size Distribution by SediGraph | Sleve Residue-wet Retention | ||||
|---|---|---|---|---|---|
| < 7um | % | - | > 125um | % | - |
| < 5um | % | - | > 75um | % | - |
| < 2um | % | - | > 45 um | % | - |
| < 1um | % | - | Cumulative>45 | % | - |
Complete Technical Dossier

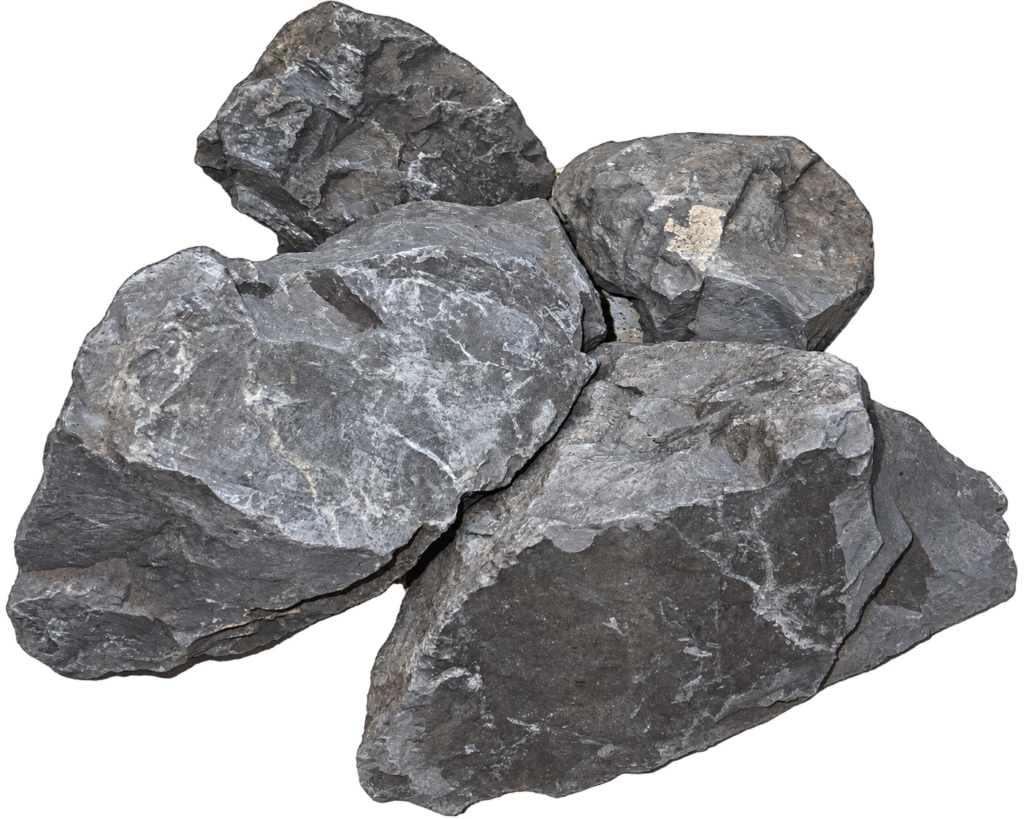

Download the full spectral analysis, safety data sheets, and industrial application guides for BG-1.
